Pink trumpet tree · Family: Bignoniaceae · ID 20112
· alive
· Condition: fair
· LC · Least Concern
· Elevation: 34.0 m

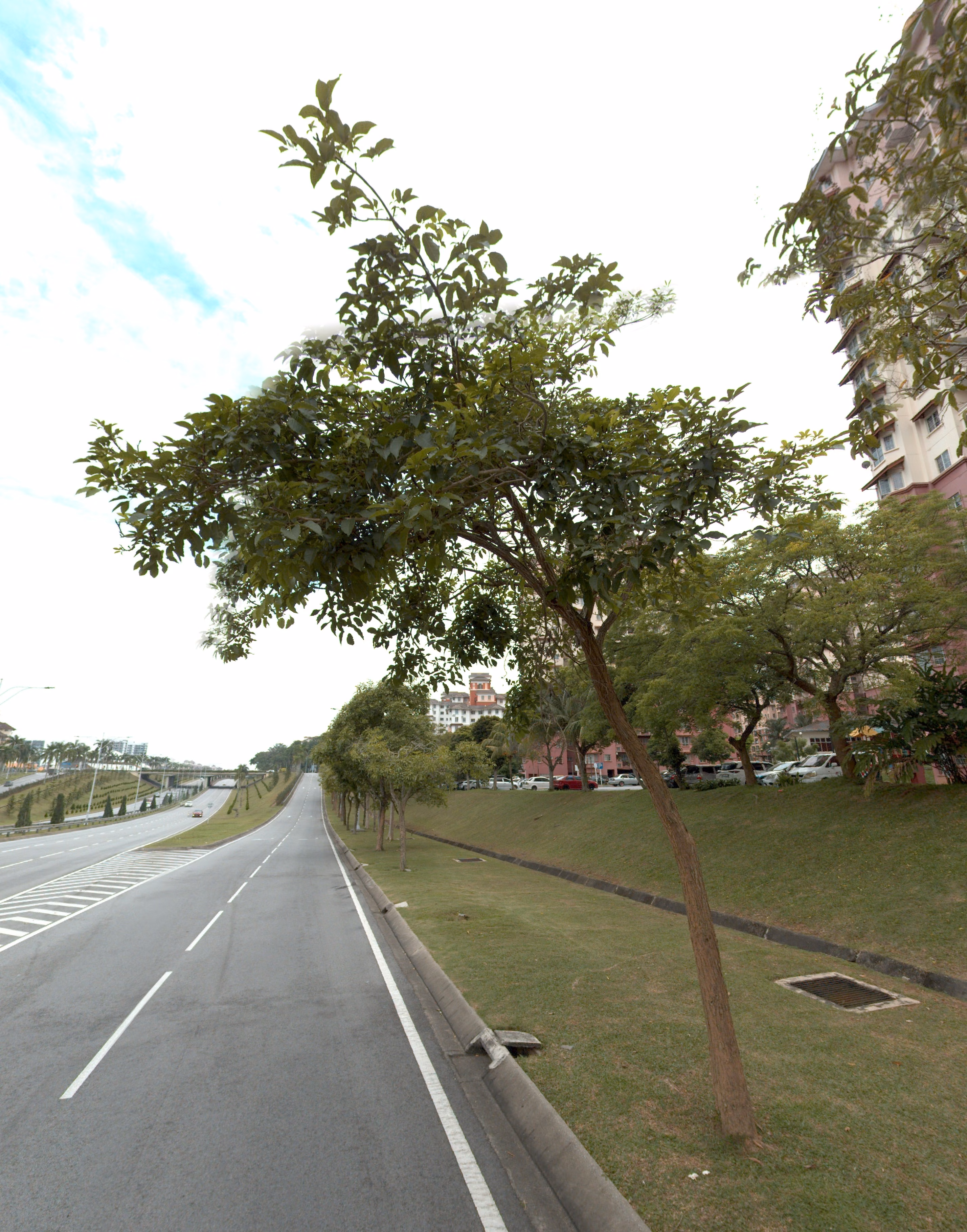

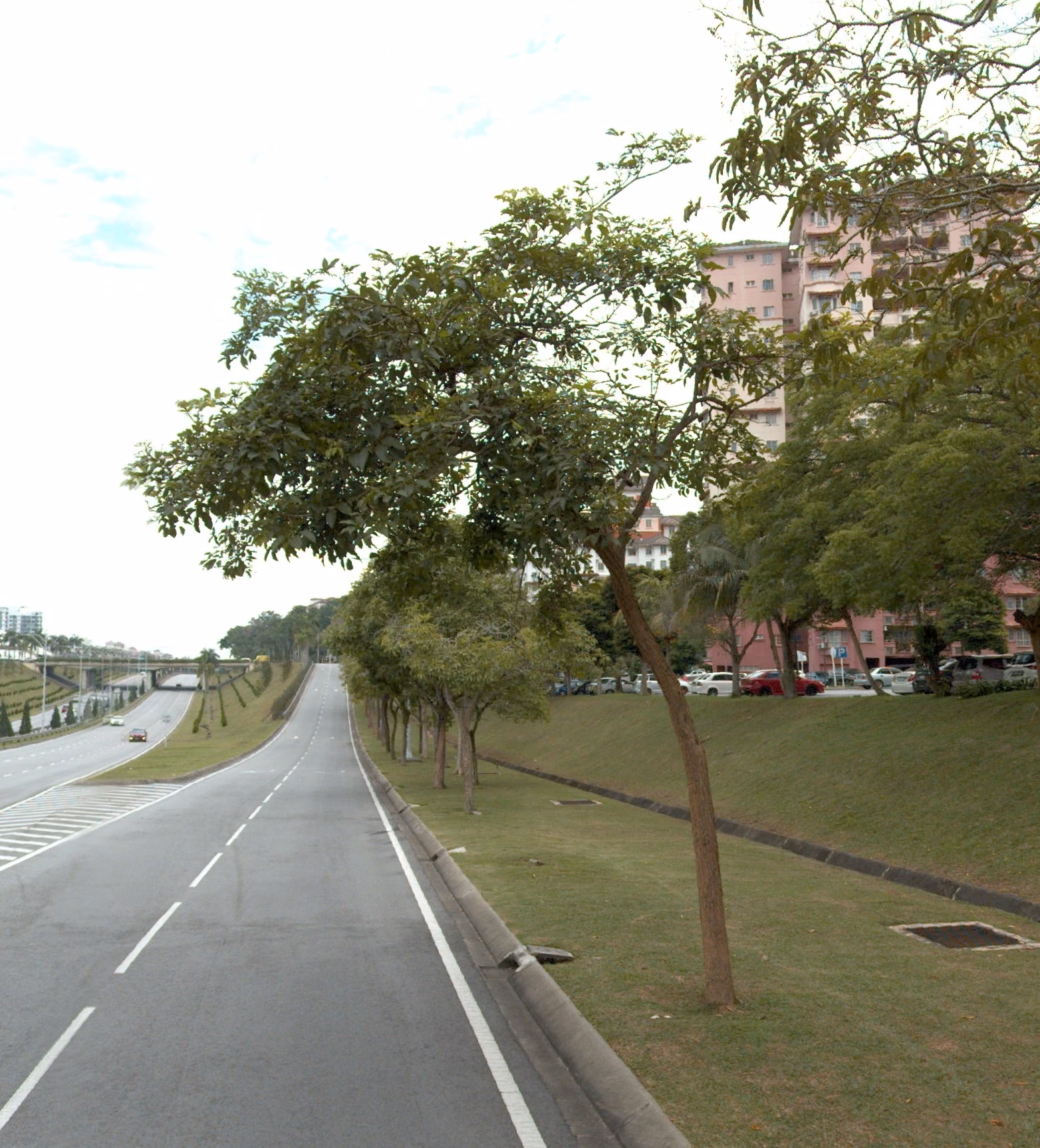

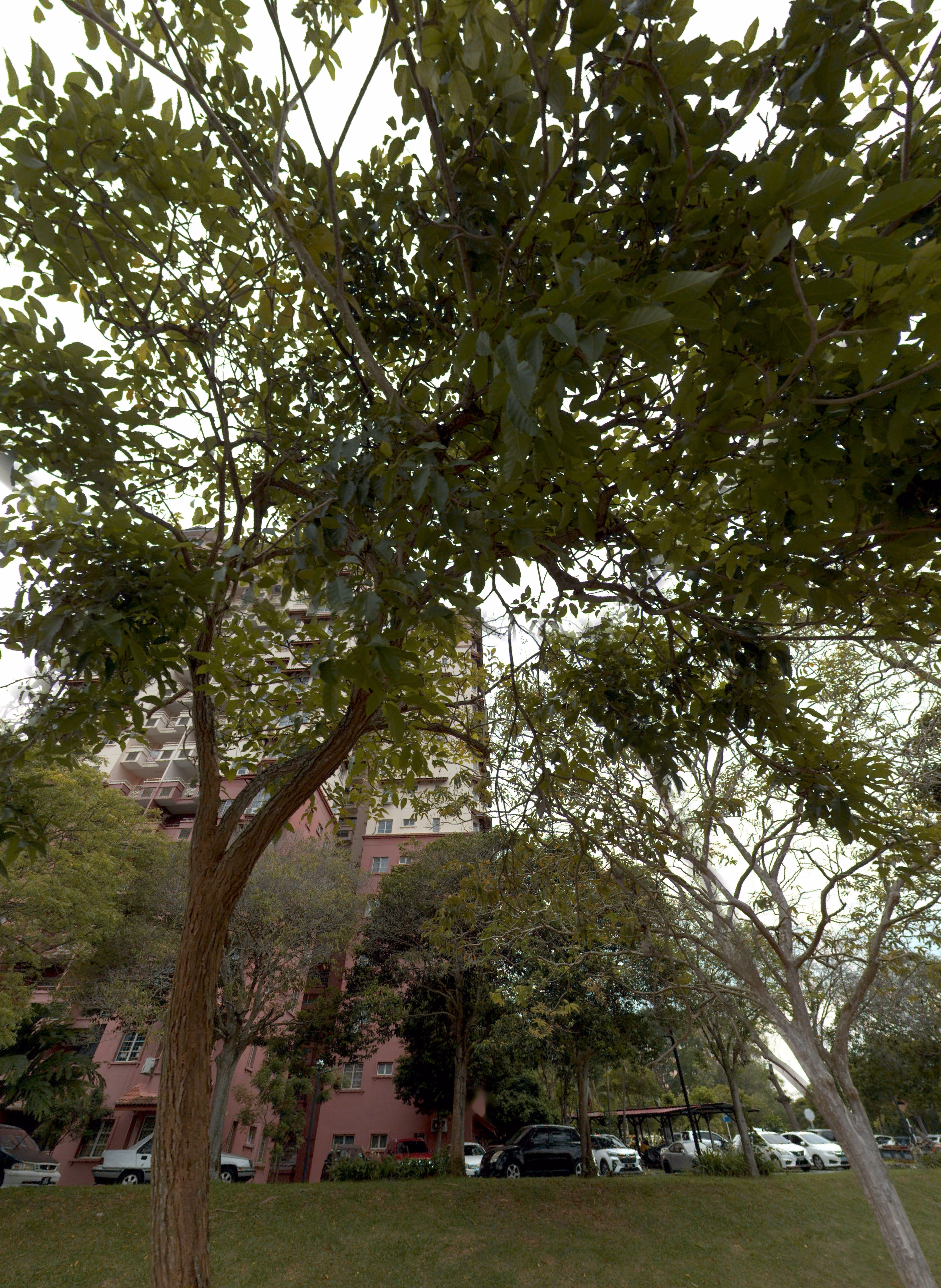

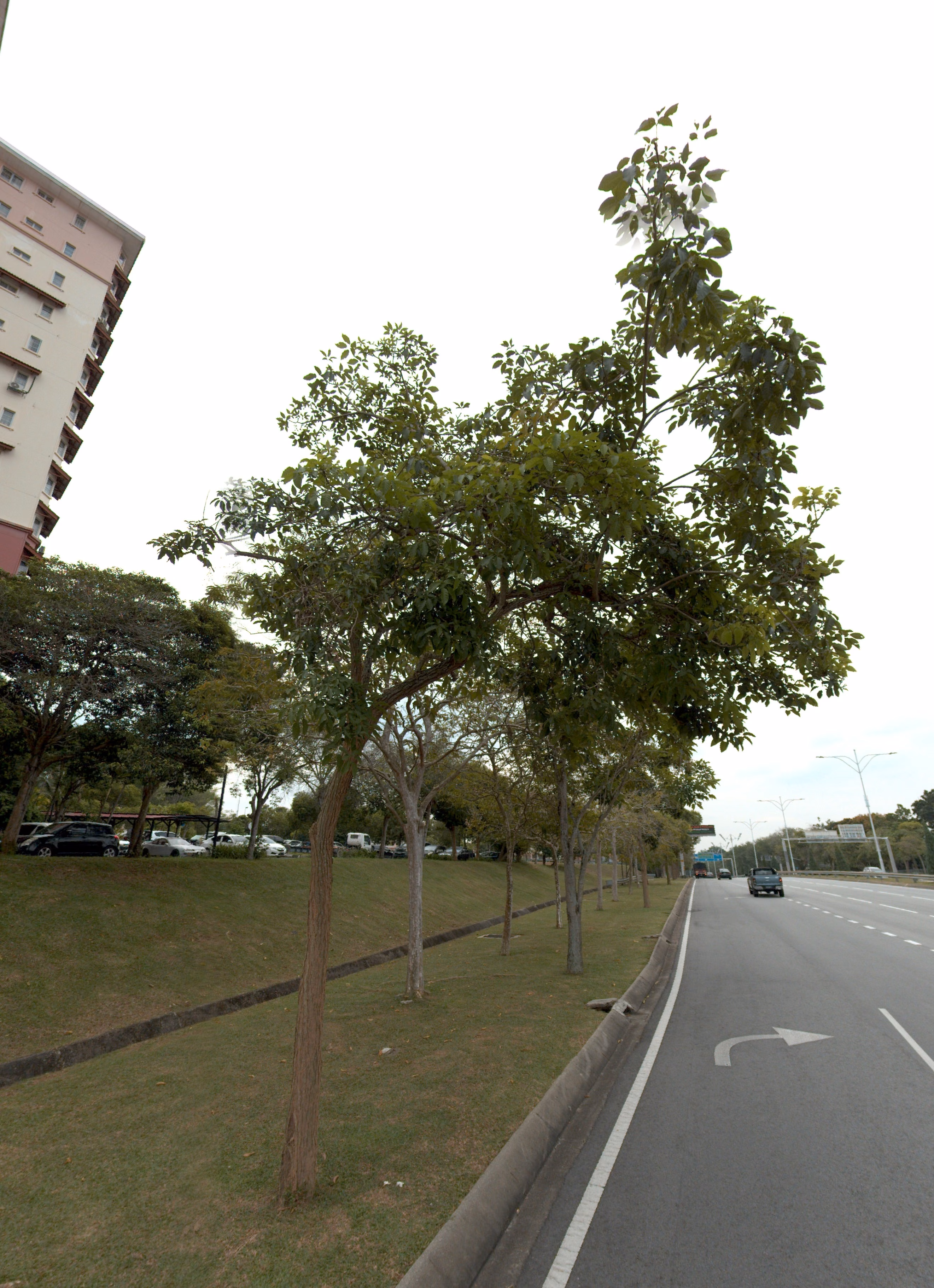

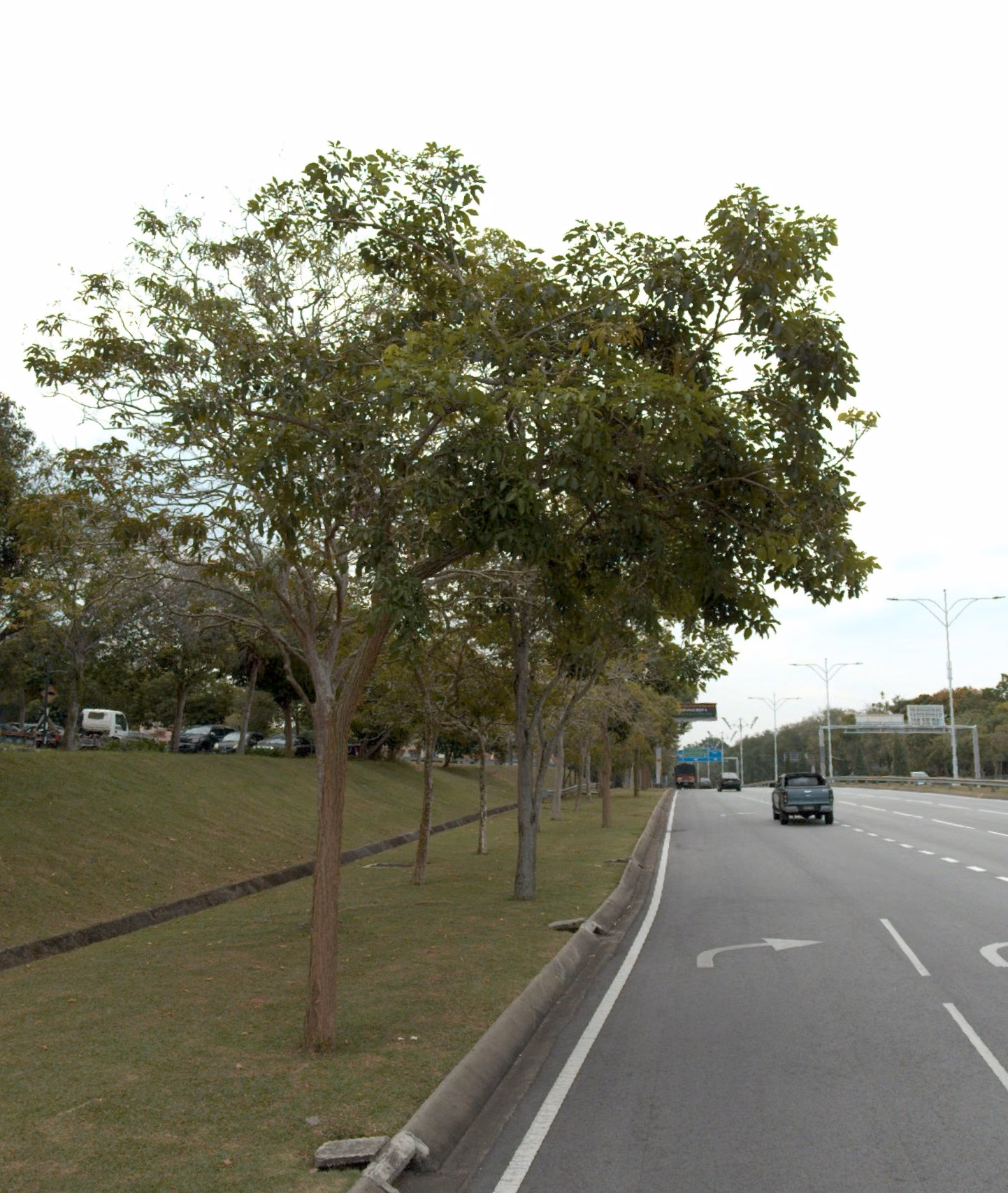

Photos
360° street view
drag to look · scroll to zoom
3D point cloud
drag to rotate · scroll to zoom
trunk
branches
leaf
Dimensions
8.18 mHeight
3.88 mTrunk height
25 cmTrunk diameter (DBH)
5.2 mCanopy height
7.16 mCanopy width
22.47 mCanopy circumference
38.1 m²Crown projection area
117.15 m³Crown volume
1Stems
Structure & risk
33.65Slenderness (H/D)
1.42Safety factor (default wind)
23.57 °Leaning angle
7.78 °Trunk lean angle
4.62Competition index
2.92 mTree protection zone
4.38 mRoot protection zone
l0TMS category
Health & vitality
fairCondition
mediumVitality
matureAge class
slightly defoliatedCrown transparency
18.08 %Foliage transparency
0 %Dieback
75.54 %Crown density
95.39 %Crown light exposure ratio
63.5 %Live crown ratio
211.56 m²Leaf area
5.56Leaf area index (LAI)
1.81Leaf area / crown vol.
Ecosystem services
115.82 kgCarbon storage
25.93 kgCarbon sequestration / yr
68.51 kgOxygen production / yr
0.11 m³Avoided runoff
1.94 m³Water intercepted
2.28 m³Transpiration
1.93 m³Evaporation
11.86 m³Potential evapotranspiration
4.3 gCO removed / yr
16.98 gNO₂ removed / yr
36.62 gSO₂ removed / yr
10.68 gPM2.5 removed / yr
204.56 gO₃ removed / yr
Data quality
0Outlier index
Surroundings
noneOverhead utilities
Amenity valuation
2042.11CAVAT value
18460.55Koch value
2007.2RADO value
Other
2025-12-19G u fextracted_change date
23:57:28G u fextracted_change time
80G u fextracted_critical wind speed
2025-06-18G u fextracted_inv date
Lebuh Sentosa G u fextracted_street
318853G u fextracted_taxon i d
2.99Crown base height
8.18Live height
Clearances
ConflictRoad clearance
2.93 mRoad clearance — minimum height
0 mRoad clearance — minimum distance
4.32 m³Road clearance — conflict volume
22.5Road clearance — conflict volume ratio
Not provided
Catalogued metrics with no value for this tree — measured, derived or analysed alike. Listed rather than hidden so absence is visible instead of inferred.
Girth — the survey did not record which measurements were availableGrowth formCrown light exposure — the survey did not record which measurements were availableTrunk measuredCrown measuredSpecies identified
Location
Lebuh Sentosa · 2.944595, 101.683111 · Elevation 34.0 m
